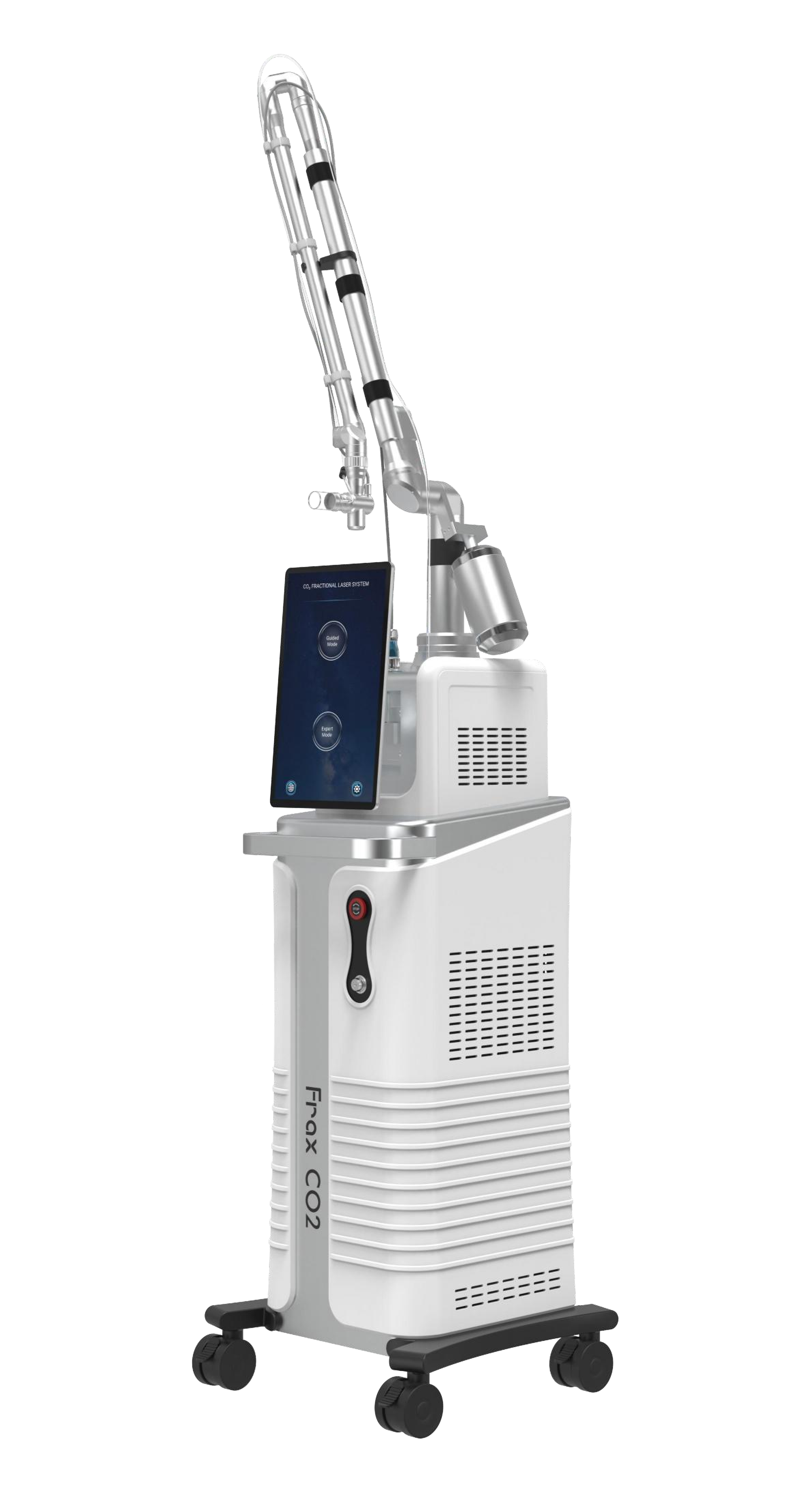

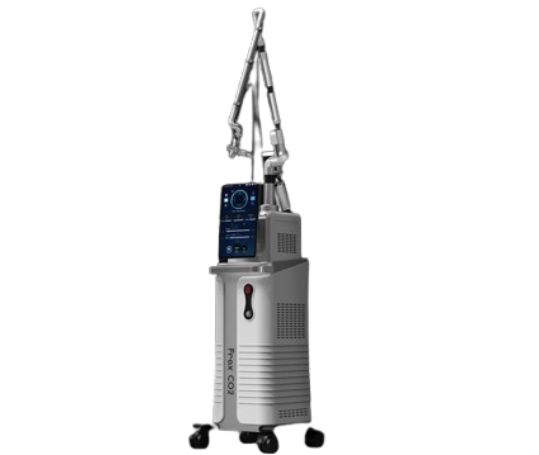

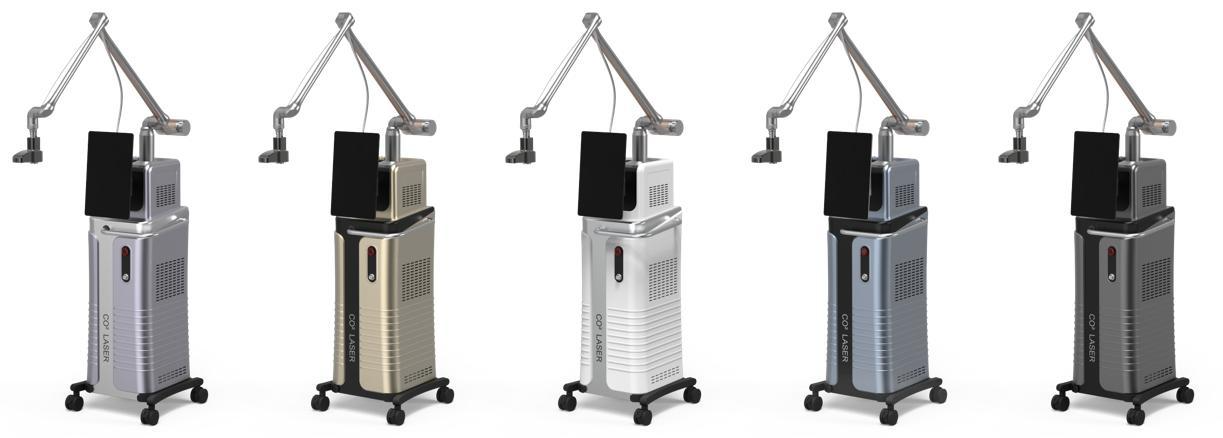

Fractional CO2 FC-300

Short Description

The Fractional CO2 FC-300 Laser is a cutting-edge system designed for advanced skin resurfacing and rejuvenation. It combines precision, safety, and versatility to deliver effective aesthetic and clinical results.

Brand	Fractional C02
Model	FC300
Wavelength	10600 nm
Scanning Area	20 × 20 mm

Item Description

The FC-300 uses a 10600 nm wavelength with fractional, full ablative, and hybrid modes, making it suitable for treating wrinkles, scars, pigmentation, and skin laxity. Its technology ensures deep penetration with minimal downtime.

Equipped with multiple handpieces, including a resurfacing scanner, cutter, and vaginal probe, it offers wide applications in dermatology and gynecology. This versatility makes it a reliable choice for clinics and medical practices.

With features like adjustable scanning area, precise microbeam control, and 360° articulated arm rotation, the FC-300 provides superior performance and patient comfort. It is designed to support safe, effective, and long-lasting results.

FRAXCO2 - Next-Generation Upgrade With Enhanced Features

Closed-loop galvo with fire-when-ready interlock delivers on-target, uniformdots—2-3× faster random scans with fewer hot spots and less pain. Auto handpiece detection and 37-class fault protection.

Integrates Fractional Ablative, Full-Field Ablative, and Hybrid scanning—mix andmatch energy for precise results in any zone

Ultra Mode: crisper microspots. Instant Tightening (70W only): visible lift in minutes

Android: fast touch, OTA Wi-Fi updates (no factory return), open APK support, and AI multilingual UI-12+ languages, expandable

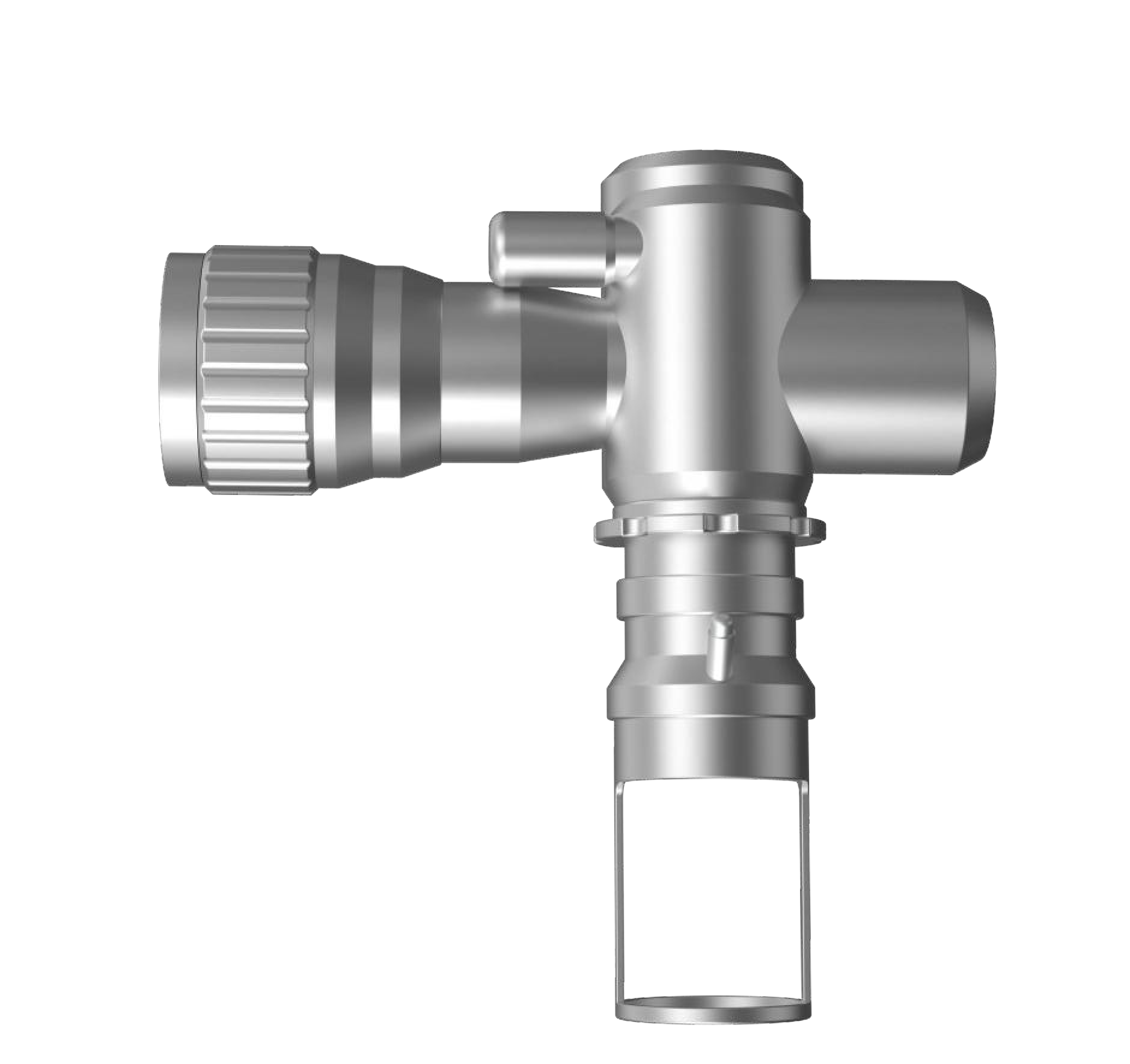

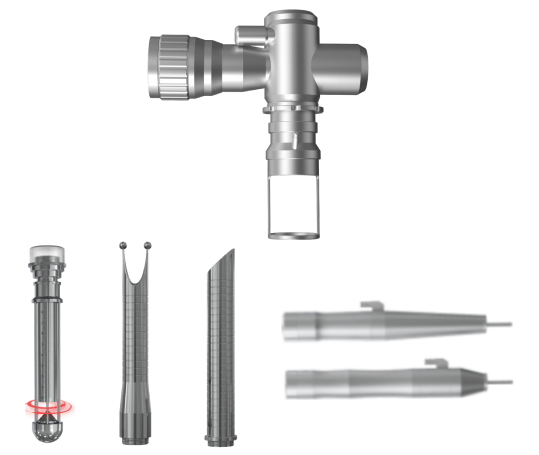

Resurfacing Scanner

✓ Skin renewing and resurfacing
✓ Wrinkle removal, skin tightening
✓ Acne and acne scar removal
✓ Remove intractable melasma and pigmentation
✓ Sun damage recovery
✓ Stretch marks
✓ Smooth burnt scars and surgery scars, dermabrasion etc

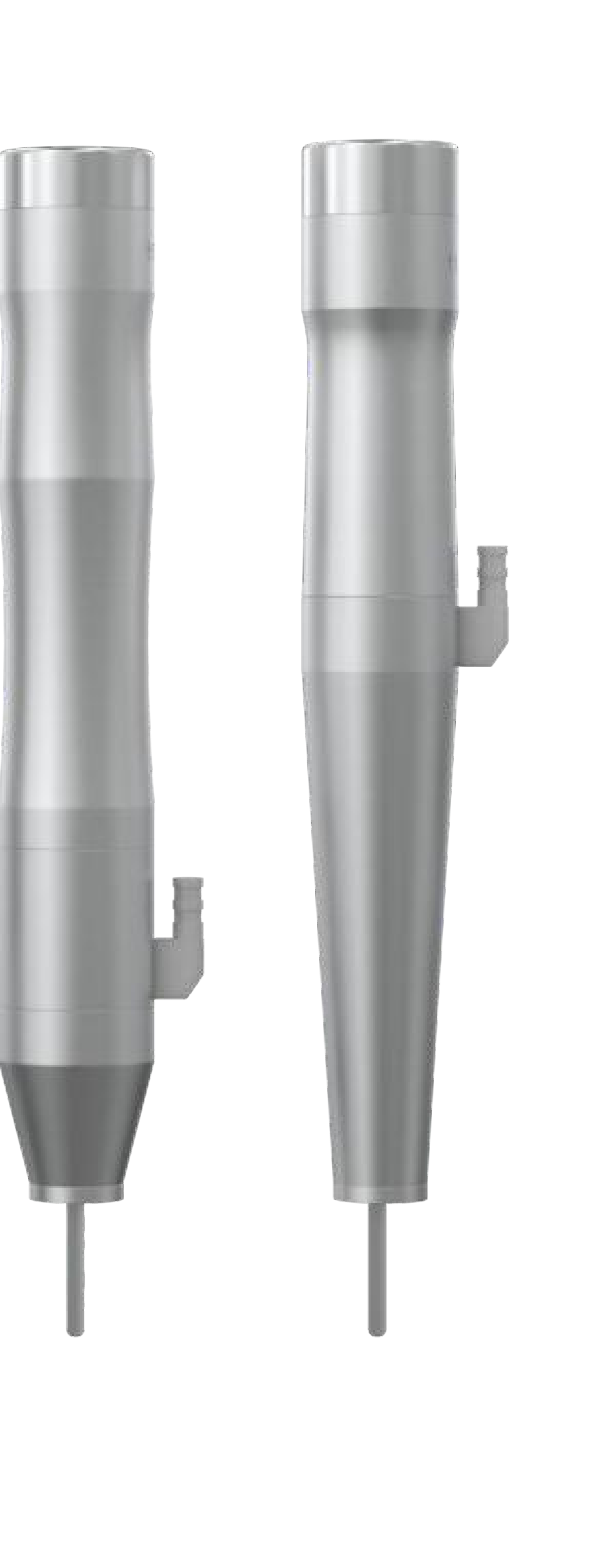

Cutter

Converts the CO2 beam into a surgical scalpel—precise, hemostatic incisions with minimal thermal spreadfor excisions, blepharoplasty, biopsies, and minor dermatologic surgery

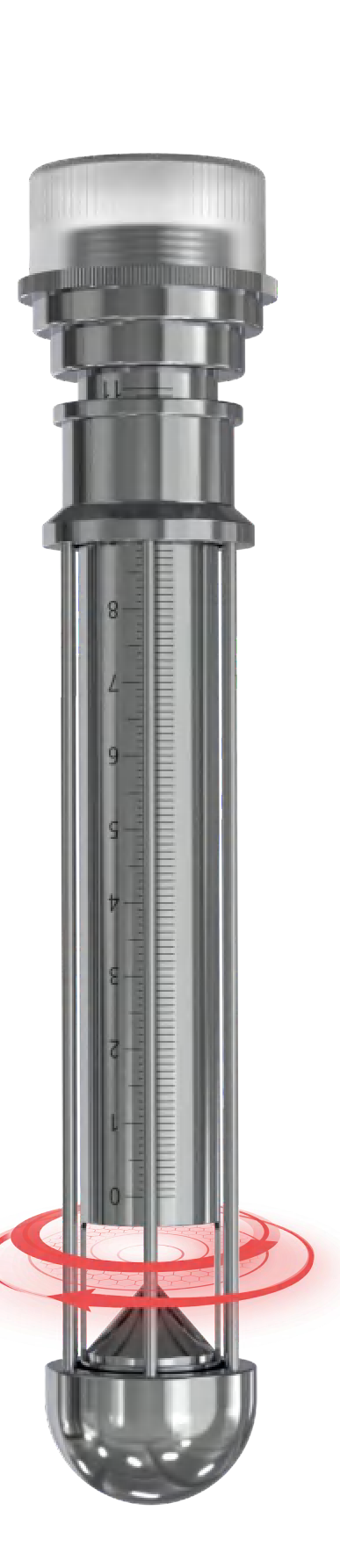

Vulva Rejuvenation

External vulvar resurfacing and tightening—smooths texture, enhancestone, supports comfort.

Urinary incontinence

Targets mild‑to‑moderate stress leaks by supporting periurethral tissues and pelvic tone.

Reflector

Increases energy penetration and reduces inflammation

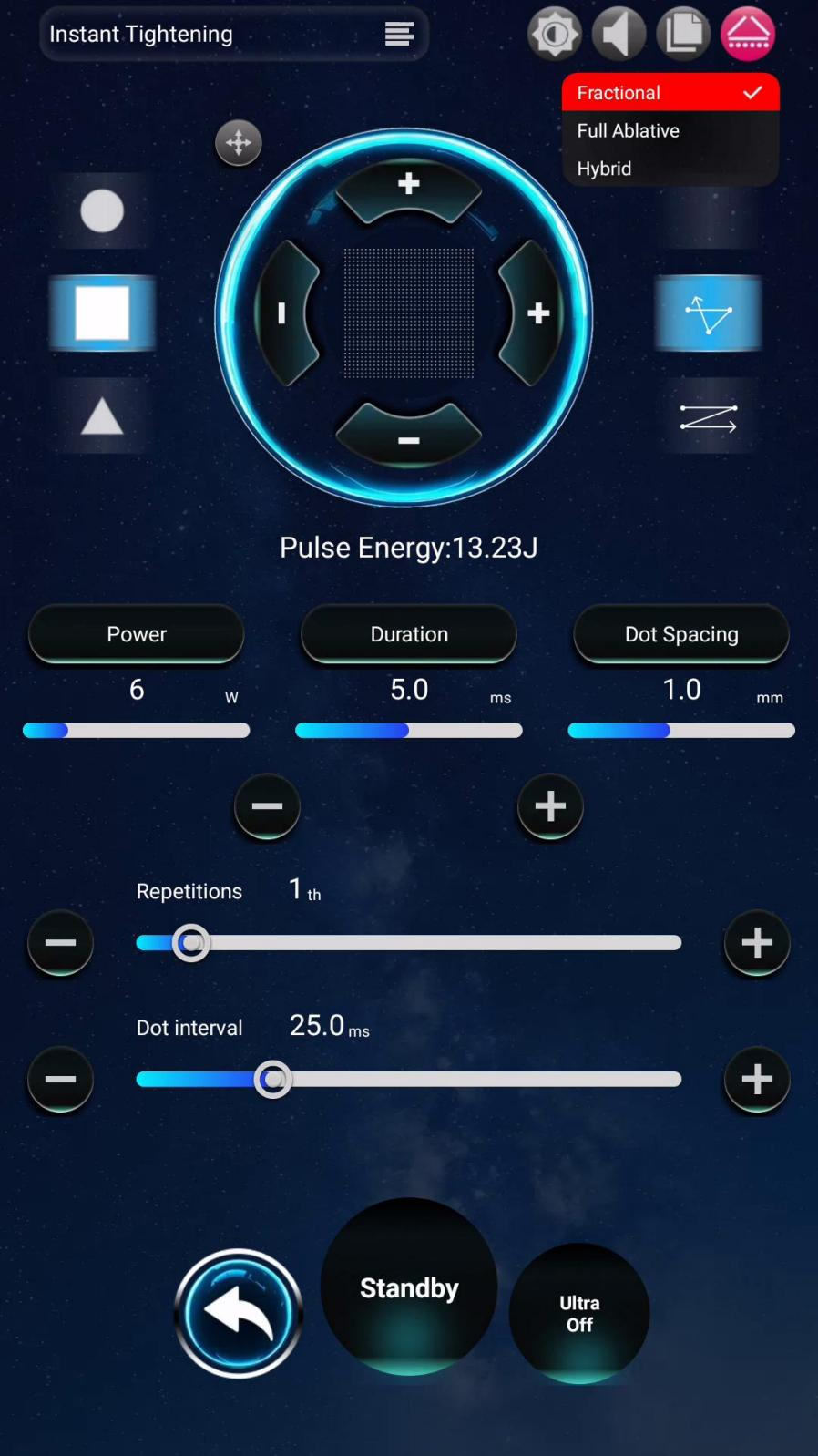

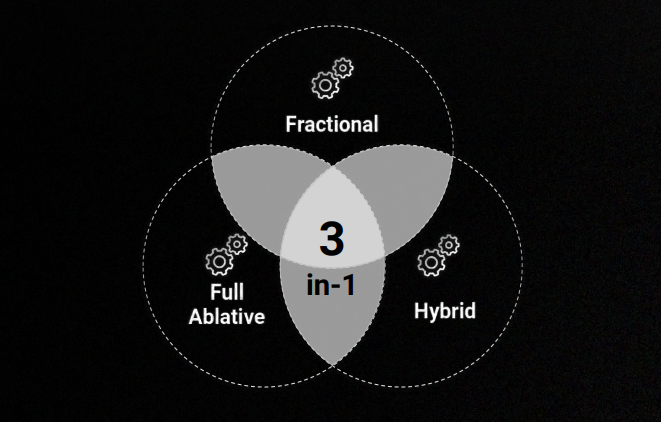

Three Treatment Modes

One platform, three modes—switch between Fractional, Full‑Field, andHybridinseconds instead of buying multiple devices, tailoring depth, coverage, anddowntime per area. This versatility expands your menu (wrinkles, scars, texture), 4 scanning attracts a wider client base, and boosts utilization and ROI.

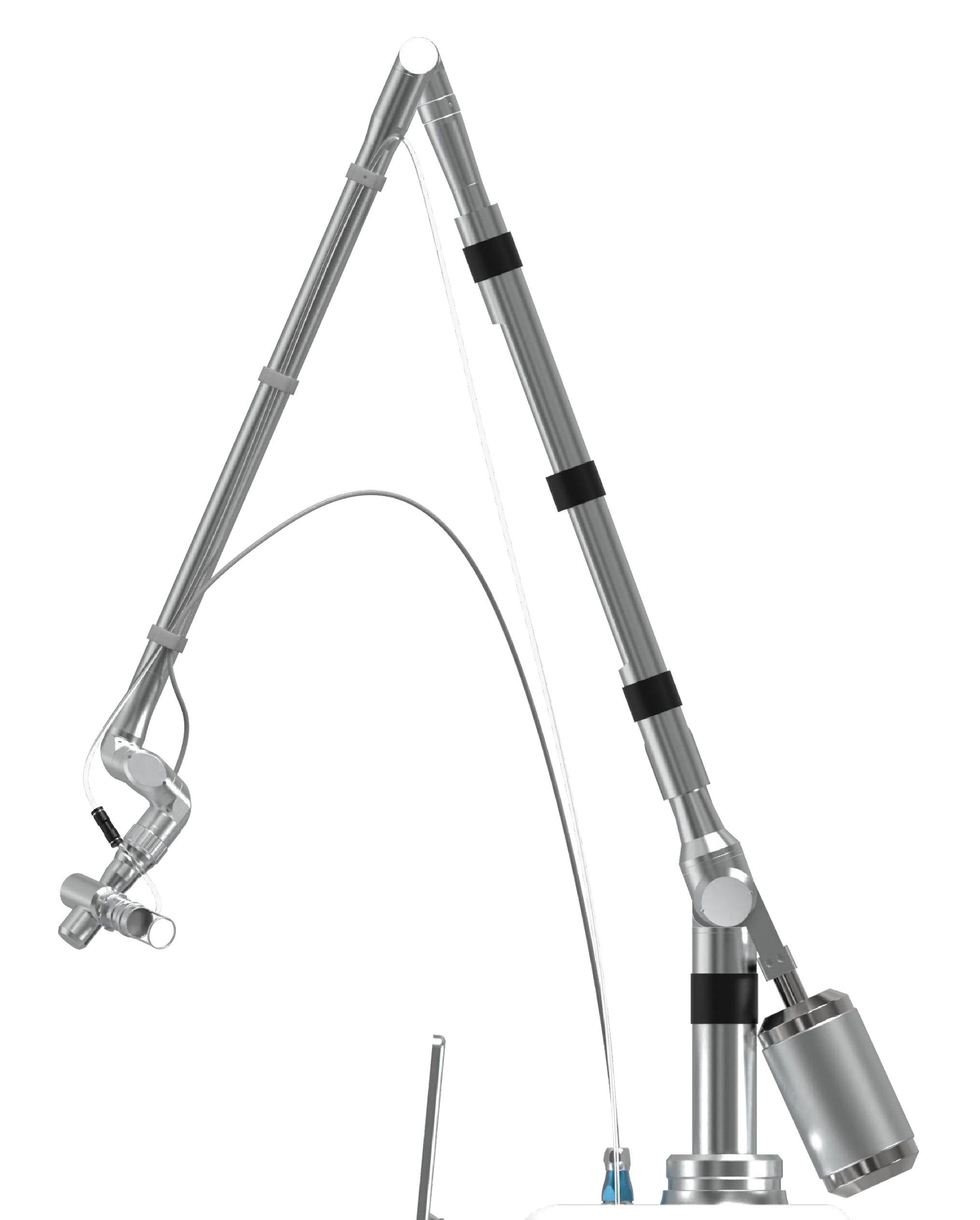

Upgraded Articulated Arm

Seven-joint heavy-hammer aluminum alloy light guide arm with built-in hard film reflective lens

Seven‑joint articulated beam‑delivery arm with precision bearings for smooth movement. It can position and angle the beam virtually anywhere in the workspace, overcoming the reach limits of conventional delivery

High‑grade aluminum‑alloy construction keeps the arm light yet rigid; assembled in a clean environment to protect the optics. The design resists long term drift, maintaining alignment and treatment accuracy.

Hard‑coated reflective mirrors with a high damage threshold preserve beam quality and stability, minimizing energy loss and performance issues caused by optic wear or contamination.

An integrated, adjustable counterweightatthedistal end lets operators set thecenterofgravity for effortless, stable positioning

Core Laser By Coherent (USA)

Longer Service Life

Premium U.S. Coherent RF metal tube- more stable than glass‑tube sources, longer lifespan, with negligible routine power drift

More Efficient Treatment

Supports approximately 2-4mmablationdepth to trigger collagen contractionandregeneration, helping rebuilddermal architecture.

More Stable Output

Pulse-to-pulse consistency in pulse width and peak power keeps output steady; uniform beam profile delivers predictable, repeatable energy.

MorePreciseEnergy

10,600-nmbeamwithCPGscanningproduces 50-80 μmmicrospotsthatcouple precisely to water for controlled ablation andcoagulation

13 Thirteen Types Of Treatment

Benign Lesion Removal (SKs, tags, warts)

Photoaging & Texture Renewal

Pigment & Tone Correction

Pore Refinement & Oil Control

Scar Remodeling & Stretch Marks

Women’s Intimate Health (Vaginal, SUI, Vulvar)

Rhinophyma Debulking & Nasal Contour

Periocular & Perioral Line Smoothing

Body Applications: Trunk & Extremities

Perineal Lesions / Anorectal (External)

Precision Incisions & Minor Surgery

Lip & Oral Mucosa Resurfacing

Hybrid High-Impact Resurfacing

Technical Specifications

Brand	Fractional C02
Model	FC300
Wavelength	10600 nm
Working Mode	Fractional Full Ablative Hybrid
Treatment Handpiece	Resurfacing Scanner Cutter Vaginal Probe (Vaginal Rejuvenation, Urinary incontinence, Vulva Rejuvenation)
Microbeam Diameter	0.12 mm – 2 mm (depends on the settings)
Scanning Area	20 × 20 mm
Articulated Arm Rotation	360° rotating articulated arm
Power Supply	230 – 240 V 50 – 60 Hz Max 18 A

Traditional Analog Driver

Traditional Analog	Result
Direct Output	Medical Malpractice
Water pump cooling system failure Remote control interlock failure Safety interlock failure	Only protects against a small number of situations
Default speed	Obvious pain
The handle must be paired with the driver	Pairing errors can cause burnout and damage to the controller. If any problems occur, the controller must be returned to the factory.

Intelligent Digital Driver

Intelligent Digital (Closed-Loop)	Advantages
Fully closed-loop control to obtain the working status of the scanning handpiece and the motor deflection position in real time	Improved safety and reliability
Open circuit, short circuit, driver power failure, motor overcurrent, deflection limit, wiper head falling off, excessive swing, etc.	Hierarchical intelligent fault diagnosis, more protection (protection against 37 types of faults, automatic stop when a fault is detected)
Reduce or eliminate the fixed delay in analog systems waiting for the galvanometer to deflect into position	Greatly reduces the pain of treatment and increases the scanning speed by 2-3 times.
Automatic recognition and pairing	Intelligent identification and fault diagnosis function. No need to return to the factory after damage, non-professionals can quickly replace it

✓ Advanced R&D Capabilities
✓ Global Compliance Assurance
✓ Strict Quality Inspection
✓ Comprehensive Customized Services
